4. MXG Weapon Mod - Advanced Crosshair

Tested on: 1.1b2

This resource will give you an advanced crosshair/reticle like most modern FPS games use (CoD). Parts of this resource is based of this resource.

Quote:like most modern FPS games

To be exact:

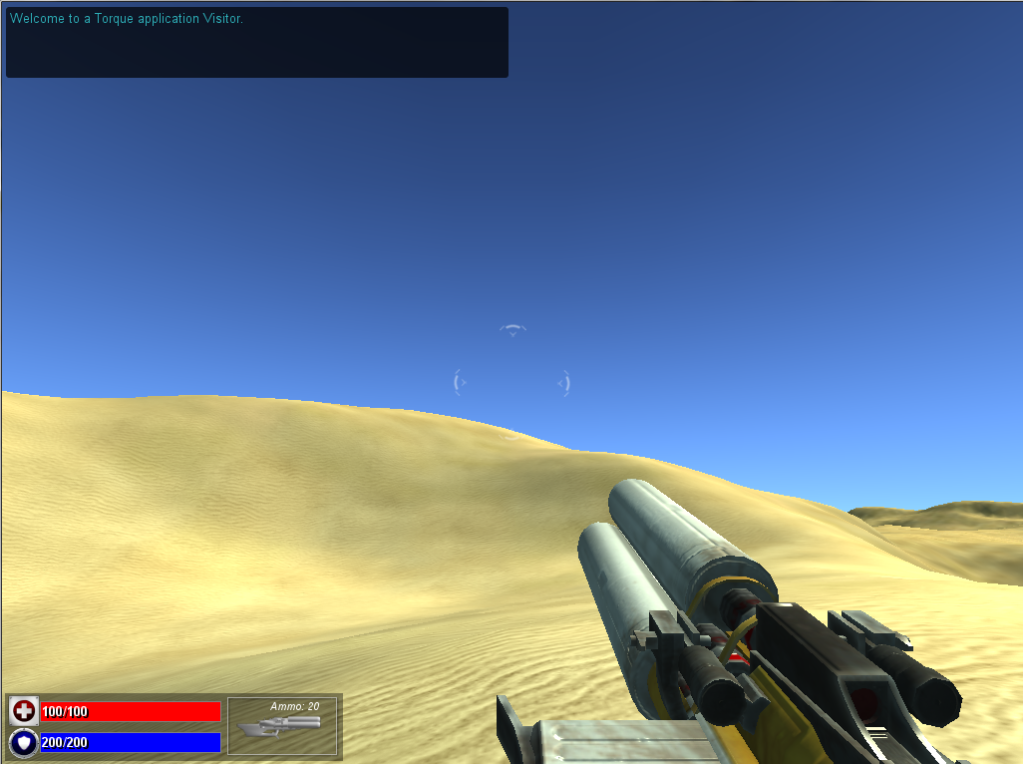

-Crosshair spread depending on movement speed.
-Crosshair spread depending on pose.
-Crosshair spread depending on rotation speed.
-Crosshair "hit mark" that indicates if you've hit something/one.
-Crosshair image depending on aimed objects team.
--Ally crosshair
--Enemy crosshair
--Neutral crosshair

This resource (unlike the previous ones) does not require that you've installed any of my previous resources :D.

To install this resource you'll first need to download this file.

Then you'll need to place the guiAnimatedCrosshairHud.cpp in folder: T3D/fps/guiAnimatedCrosshairHud.cpp and add it in C++.

And then, some changes here and there, and like the previous, this is how to install this part:
Where it says // Added, it means that the line is added.
Where it says // Removed, it means that the line is removed.
Where it says // Changed, it means that the line is changed.
Where it says ..., it means that there is code between what ever that was last written.
Whenever it says ..., there will be an comment below describing what function it is.

I recommend you using CTRL + F to find where to put the code blocks. Remember to backup before installing.

Then, in T3D/shapeBase.cpp edit the following:

...
//In ShapeBase::ShapeBase()
   mMass( 1.0f ),
   mOneOverMass( 1.0f ),
   mPose( "StandPose" ), // Added
   mTeam( "" ), // Added

that was much O_o

In T3D/shapeBase.h add the following:

...
//In public of ShapeBaseImageData
   bool  accuFire;                  ///< Should we automatically make image's aim converge with the crosshair?
   bool  cloakable;                 ///< Is this image cloakable when mounted?

   // Added ->
   F32   maxSpread;                 ///< MaxSpread, how much should the crosshair spread?
   F32   minSpread;                 ///< MinSpread, how low should it go?
   F32   maxCrouchSpread;           ///< MaxCrouchSpread, how much should the crosshair spread when crouching?
   F32   minCrouchSpread;           ///< MinCrouchSpread, how low should it go when crouching?
   //F32   maxProneSpread;          ///< MaxProneSpread, how much should the crosshair spread when proneing?
   //F32   minProneSpread;          ///< MinProneSpread, how low should the crosshair go when proneing?
   // Added <-
...
//In protected of class ShapeBase
   TSThread *mHulkThread;
   VectorF damageDir;

   const char* mPose; // Added
   const char* mTeam; // Added
...
//In public of class ShapeBase
   /// @return Damage factor, between 0.0 - 1.0
   F32  getDamageValue();

   /// Returns the rate at which the object regenerates damage
   F32  getRepairRate() { return mRepairRate; }

   // Added ->
   /// Sets the player's pose.
   void  setPose(const char* pose) { mPose = pose; }

   /// Gets the player's pose.
   const char*  getPoseString() { return mPose; }

   /// Sets the player's team.
   void  setTeam(const char* team) { mTeam = team; }

   /// Gets the player's team.
   const char*  getTeam() { return mTeam; }
   // Added <-

Now, in T3D/shapeImage.cpp:

...
//In ShapeBaseImageData::ShapeBaseImageData()
   projectile = NULL;

   cloakable = true;

   maxSpread = 0; // Added ->
   minSpread = 0;
   maxCrouchSpread = 0;
   minCrouchSpread = 0;
   //maxProneSpread = 0;
   //minProneSpread = 0; // Added <-
...
//In ShapeBaseImageData::initPersistFields()
   addField( "minEnergy", TypeF32, Offset(minEnergy, ShapeBaseImageData),
      "Minimum Image energy for it to be operable." );
   addField( "accuFire", TypeBool, Offset(accuFire, ShapeBaseImageData),
      "Flag to control whether the Image's aim is automatically converged with "
      "the crosshair.nCurrently unused." );

   addField("maxSpread", TypeF32, Offset(maxSpread, ShapeBaseImageData), // Added ->
      "The value of the crosshairs max spread.");
   addField("minSpread", TypeF32, Offset(minSpread, ShapeBaseImageData),
      "The value of the crosshairs min spread.");
   addField("maxCrouchSpread", TypeF32, Offset(maxCrouchSpread, ShapeBaseImageData),
      "The value of the crosshairs max spread when crouching.");
   addField("minCrouchSpread", TypeF32, Offset(minCrouchSpread, ShapeBaseImageData),
      "The value of the crosshairs min spread when crouching.");
   //addField("maxProneSpread", TypeF32, Offset(maxProneSpread, ShapeBaseImageData),
   //   "The value of the crosshairs max spread when proneing.");
   //addField("minProneSpread", TypeF32, Offset(minProneSpread, ShapeBaseImageData),
   //   "The value of the crosshairs min spread when proneing."); // Added <-
...
//In ShapeBaseImageData::packData(BitStream* stream)
   stream->write(minEnergy);
   stream->writeFlag(hasFlash);
   // Client doesn't need accuFire

   stream->write(maxSpread); // Added ->
   stream->write(minSpread);
   stream->write(maxCrouchSpread);
   stream->write(minCrouchSpread);
   //stream->write(maxProneSpread);
   //stream->write(minProneSpread); // Added <-
...
//In ShapeBaseImageData::unpackData(BitStream* stream)
   stream->read(&minEnergy);
   hasFlash = stream->readFlag();

   stream->read(&maxSpread); // Added ->
   stream->read(&minSpread);
   stream->read(&maxCrouchSpread);
   stream->read(&minCrouchSpread);
   //stream->read(&maxProneSpread);
   //stream->read(&minProneSpread); // Added <-

Soon there, only two edits left. Now in T3D/player.cpp:

...
//In PlayerData::initPersistFields()
   addField( "pickupRadius", TypeF32, Offset(pickupRadius, PlayerData),
      "Radius around the player to collide with Items in the scene (on server)." );
   addField( "maxTimeScale", TypeF32, Offset(maxTimeScale, PlayerData),
      "Maximum time scale for action animations.n"
      "Action animations are automatically scaled to match the ground "
      "velocity; this field limits the maximum time scale." );
   // Added ->
   addField( "team", TypeString, Offset(team, PlayerData),
      "Player's team variable" );
   // Added <-
...
//In Player::onAdd()
   mWorkingQueryBox.minExtents.set(-1e9f, -1e9f, -1e9f);
   mWorkingQueryBox.maxExtents.set(-1e9f, -1e9f, -1e9f);

   // Added ->
   if(mDataBlock->team)
	   Parent::setTeam(mDataBlock->team);
   // Added <-
...
//In Player::setPose( Pose pose )
   // Not added yet, just assign the pose and return.
   if ( !isProperlyAdded() )
      return;

   Point3F boxSize(1,1,1);

   // Changed ->
   // Resize the player boxes
   switch (pose)
   {
      case StandPose:
         boxSize = mDataBlock->boxSize;
		 Parent::setPose("StandPose");
         break;
      case CrouchPose:
         boxSize = mDataBlock->crouchBoxSize;
		 Parent::setPose("CrouchPose");
         break;
      case PronePose:
         boxSize = mDataBlock->proneBoxSize;
		 Parent::setPose("PronePose");
         break;
      case SwimPose:
         boxSize = mDataBlock->swimBoxSize;
		 Parent::setPose("SwimPose");
         break;
   }
   // Changed <-

Can't believe i forgot T3D/player.h (yes, i originally forgot it):

// Jump off surfaces at their normal rather than straight up
   bool jumpTowardsNormal;

   // Added ->
   // The player's team variable.
   const char* team;
   // Added <-

Now (re)build while you add the next part:

Ok, this is the TorqueScript part, first add the following to the bottom of scripts/client/client.cs:

function clientCmdHitMark()
{
   Reticle.setHitMark(1);
}

Then add the following in all your player classes "damage" function; default class Armor::damage, located in scripts/server/player.cpp:

// Added ->
   // Render the HitMark
   commandToClient(%sourceClient, 'HitMark');
   // Added <-

   // Update the numerical Health HUD
   %obj.updateHealth();

Next, add this for all the weapon images that uses a crosshair:

// Crosshair
   //MXG: These values are not messured in any way,
   //     these values are only random values that
   //     worked fine for the rifle i used for testing.
   maxSpread = 6.0;
   minSpread = 4.0;
   maxCrouchSpread = 3.5;
   minCrouchSpread = 2.5;
   //maxProneSpread = 2.0;
   //minProneSpread = 3.5;

Next last, you'll have to add a team value to the player blocks by adding team = "teamval", where "teamval" is the team string (Ex. "Red" or "Blue").

Lastly, replace the current reticle block with this one:

new GuiDynamicCrosshairHud(Reticle) {
      position = "272 172";
      extent = "256 256";
      minExtent = "8 8";
      horizSizing = "center";
      vertSizing = "center";
      profile = "GuiModelessDialogProfile";
      visible = "0";
      active = "1";
      tooltipProfile = "GuiToolTipProfile";
      hovertime = "1000";
      isContainer = "0";
      canSave = "1";
      canSaveDynamicFields = "0";
      bitmap = "art/gui/weaponHud/blank.png";
   };

Done!
Now for some notes:
First off, the prone crosshair is untested and therefore not intended to work, same for swimming. Second, the team system was really quickly and roughly made, so nothing special there. Third, the crosshair is set by reticle.setBitmap(path); and the path should not point to a file, it should point to the crosshair file base, for example:


if that would be the case, then the setBitmap's path should point to "defaultCrosshair" not "defaultCrosshair_right.png" or "defaultCrosshair.png".

An advice from me would be to have a look in the zip for a better overview of the structure.

Fourth note; There is something strange with the debug build, so if you're going to use debug, then note that the ticking will be slower.

Fifth note; When mounting vehicles or dismounting your weapon, it will screw up the crosshair. This can be fixed by calling reticle.setBitmap(""); to clear out the reticle. As for using weapons that are mounted to the vehicle it self, will require changes. Not sure how to fix it tho.

Last, oh wait, what's that? I can't hear you form across the interwebs. You demand a video? note: for some strange reason, frapsing slowed down the crosshair, so know that it is faster in-game.

Now lastly, if you stumble upon some issues, let me know.
Also know that my methods might not be correct, nor the most professional. Therefore if you see some silly mistakes please leave a comment with the "fix".

Next resource will be "FPS like inventory system", and no source change required :D.
