TGE: small bugfix & improvements in rendering spawnSpheres

#1 While i'm at it,
here are my other recommended changes for spawnspheres.

1. enable rendering more than just the currently selected spawnsphere:
editorRender.cs
change this:

function SpawnSphere::onEditorRender(%this, %editor, %selected, %expanded)
{
   if(%selected $= "true")
   {
      %editor.consoleFrameColor = "255 0 0";
      %editor.consoleFillColor = "0 15 0 15";
      %editor.renderSphere(%this.getWorldBoxCenter(), %this.radius, 1);
   }
}

to this:

function SpawnSphere::onEditorRender(%this, %editor, %selected, %expanded)
{
   %editor.consoleLineWidth  = 1;
   %editor.consoleFrameColor = "255 0 0 50";
   %editor.consoleFillColor  = "0 0 90 10";
   %editor.renderSphere(%this.getWorldBoxCenter(), %this.radius, 2);

   %editor.consoleLineWidth  = 5;
   %editor.consoleFrameColor = "255 200 0 60";
   %editor.consoleFillColor  = "0 100 190 60";
   %pos = %this.getWorldBoxCenter();
   %pos = vectorSub(%pos, "0 0 0.005");  // prevent z-fighting with the selection grid plane
   %editor.renderCircle(%pos, "0 0 1", %this.radius);
}

2. disable writing to the z-buffer when rendering the spawnsphere polygongs.
this makes it so that you can see spawnspheres thru spawnspheres etc.
editTSCtrl.cc
change this:

if(object->mConsoleFillColor.alpha)
   {
      glColor4ub(object->mConsoleFillColor.red,
                 object->mConsoleFillColor.green,
                 object->mConsoleFillColor.blue,
                 object->mConsoleFillColor.alpha);

      glBegin(GL_TRIANGLES);
      for(U32 i = 0; i < mesh->numPoly; i++)
      {
         Sphere::Triangle & tri = mesh->poly[sortInfos[i].idx];
         for(S32 j = 2; j >= 0; j--)
            glVertex3f(tri.pnt[j].x * radius + pos.x,
                       tri.pnt[j].y * radius + pos.y,
                       tri.pnt[j].z * radius + pos.z);
      }
      glEnd();
   }

to this: (just adding glDepthMask())

if(object->mConsoleFillColor.alpha)
   {
      glDepthMask(GL_FALSE);
      glColor4ub(object->mConsoleFillColor.red,
                 object->mConsoleFillColor.green,
                 object->mConsoleFillColor.blue,
                 object->mConsoleFillColor.alpha);

      glBegin(GL_TRIANGLES);
      for(U32 i = 0; i < mesh->numPoly; i++)
      {
         Sphere::Triangle & tri = mesh->poly[sortInfos[i].idx];
         for(S32 j = 2; j >= 0; j--)
            glVertex3f(tri.pnt[j].x * radius + pos.x,
                       tri.pnt[j].y * radius + pos.y,
                       tri.pnt[j].z * radius + pos.z);
      }
      glEnd();
      glDepthMask(GL_TRUE);
   }

#2 Edited previous to add highlighting of the equatorial disk.

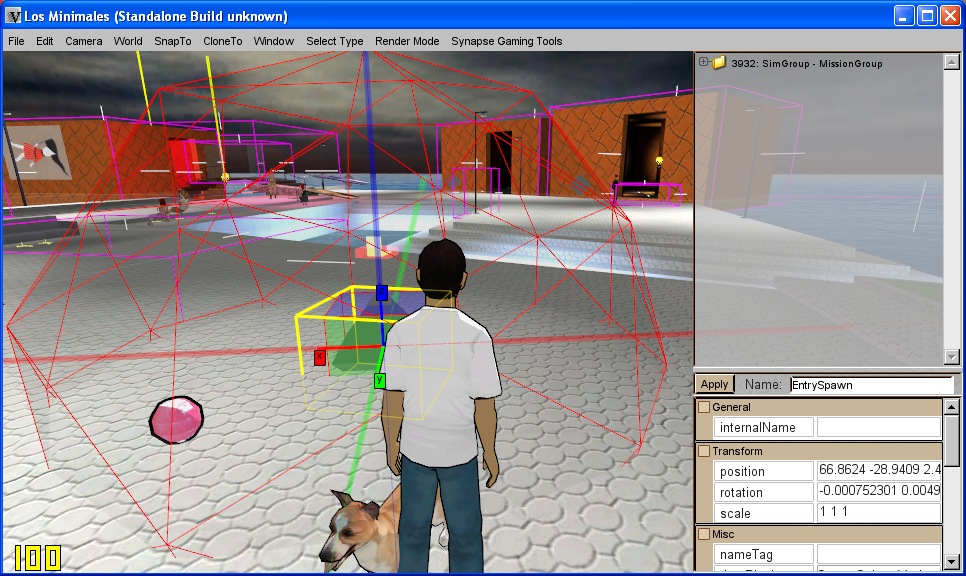

here's the original.
note that there's three spawnspheres in the back that you can't see what size they are.

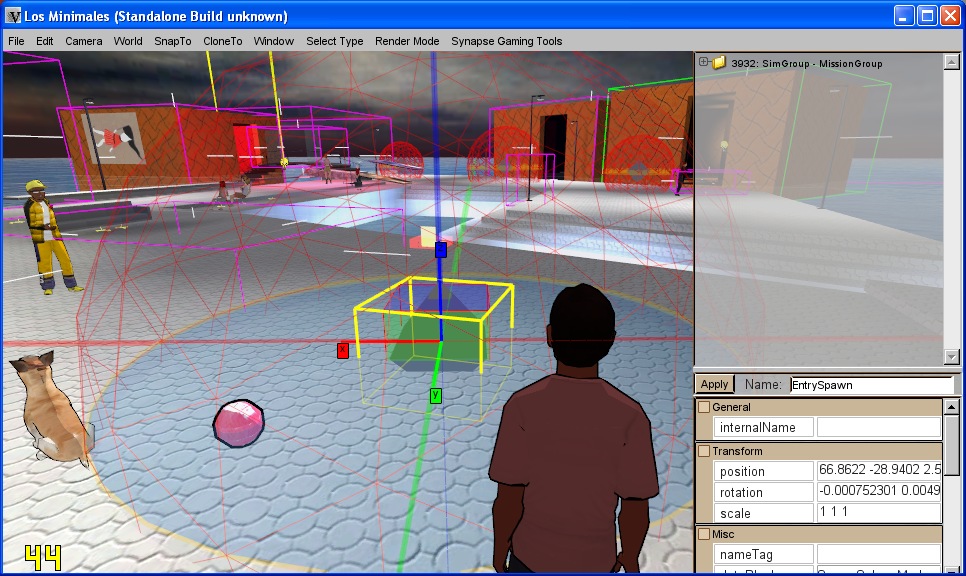

improved:

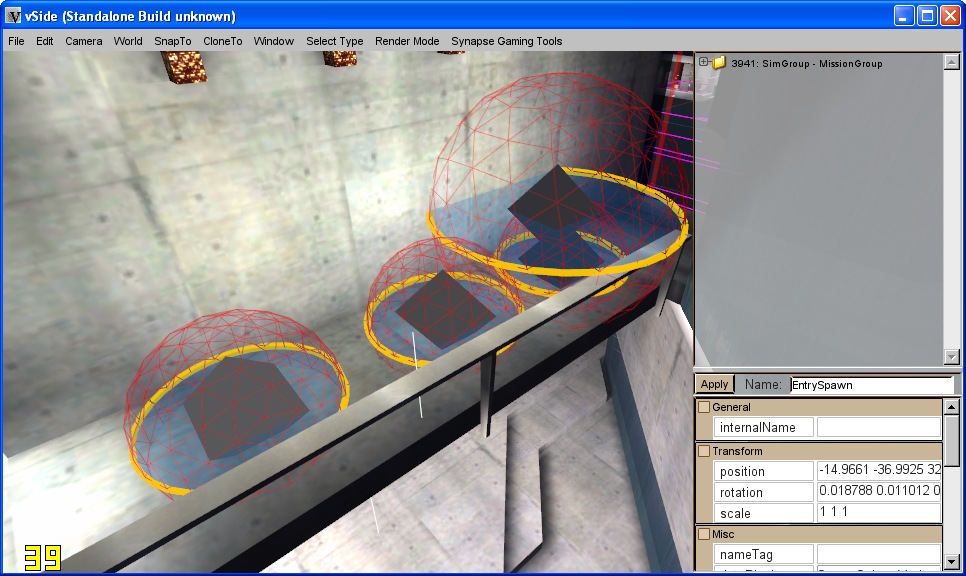

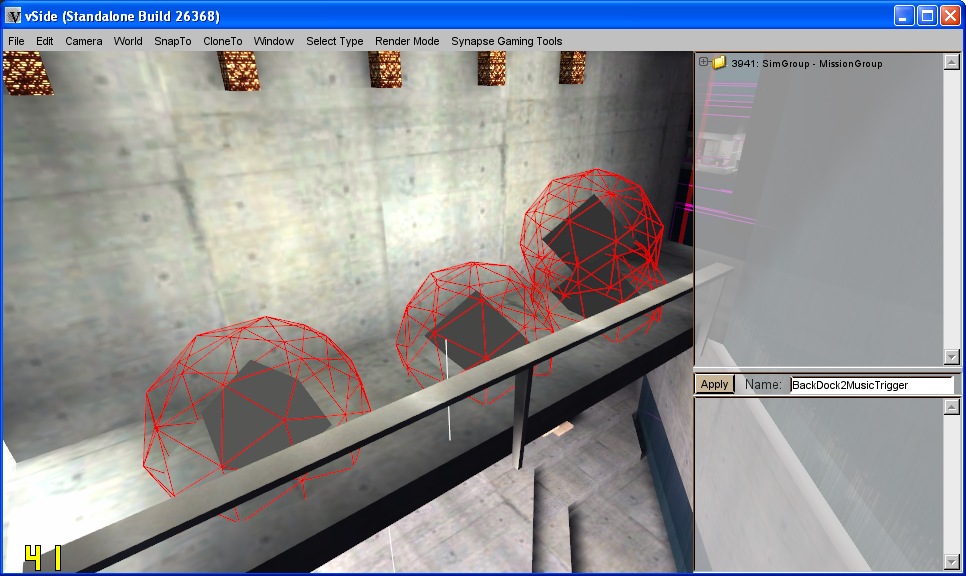

#3 Another example showing the advantage of not truncating the rendered radius to an integer:

#4 Good! thanks :)

#5 Funny you should mention spawn spheres, I was playing around with them earlier and realised they're inherited from ShapeBase. From what I could tell, the only reason for this is to allow rendering of the octogon, which really serves no purpose, and results in spawn spheres that can have mounted objects, guns, fire bullets, eject shell casings, play sounds, use dts and animations, energy/repair managment,additional networking....


All of that functionality seems pointless when the spawn sphere really needs nothing more than that provided by GameBase and GameBaseData.

Changing SpawnSpheres over is pretty simple, load up missionMarker.cc/h and change it to inherit from GameBaseData and GameBase and change the parent typedef accordingly. Adjust the typemask in the constructor, add a mHidden bool and then in OnNewDataBlock set the mObjBox to something useful like

mObjBox = Box3F(Point3F(-1, -1, -1), Point3F(1, 1, 1));
   resetWorldBox();

Markers will still work the same, but without all the extra fluff that just isn't needed. Unless your want spawn spheres that fight back :)

#6 Good points.

i've been thinking of replacing spawnspheres with triggers.
