It's Teh Economy Stoopid
by Steve Acaster · 04/06/2009 (3:15 pm) · 31 comments
Actually, it's the lightmaps. Constructor crashes on export? Bets are it's the lightmaps. Funny dark cuts along the edges of the brushes visible from certain angles and certain distances? Not brush borders, but lightmap borders.
Why does this all happen? Because geometry scale is 32, small scale lightmaps (like 8) cause trauma on larger brushes when calculating the lightmap itself. Keep brushes smaller for less lightmap calculation map crash trauma. Compressed edges of lightmaps visible? Make lightmap scale the same as geometry to dispell (though to be honest you'll probably still see a few of the little critters lurking out in the far distance if you have a long, long surface like a road). There's also an occaisonal light bleed in some interiors with this.
What the world looks like immediately after it spawns from my id
So, with that finally realised, we set out to design Map2. Map1 (aka High Wold, it's the urban pics in previous blogs) was created as a large test DIF using large facade blocks as the buildings. Rather urbanized, terrace streets. Map2 was designed for more individual buildings, detached, semi-detached housing. The idea being to create a series of prefabs which I can then drop into editor/modeling program, arrange and then export en mass as a single object (DIF or DTS).
And it all seemed to go okay like that. I did attempt a new method of creating a mesh model in Blender and then exporting it as a mapfile, but Blender's map exporter isn't up to anything particularly complicated, and the end result looked like a mangled, disjointed mess on close inspection. Blender can export mapfiles fine - if you stick to the basic rules of being BSP friendly (build it using individual blocks - think lego).
Church tower is 400m away, just out of rifle range but not sniper or lmg
So, establishing that prefabbing really is the way to go, and with a DIF version knocked up, I recreated the whole thing as a DTS. Whilst polysoup collision has been available for a while, the lack of lightmaps has meant that it just didn't cast realistic shadows onto itself or other meshes. This can look a bit odd to say the least. However, there is new tech on the horizon which may well sort this problem out, and which includes scandulous mention (it's not really scandulous, I'm just using a random adjective for teh interwebz draaama) that DIF will be more performance friendly. With my Map2 copied into both DIF and Polysouped DTS, it'll be interesting to see what the difference is in-game using said new tech.
BSP version, roofs are NULLed
To be honest I was having so much fun building the DTS version that I imbellished it quite a bit, so it's got 7k faces instead of 5k as the DIF version. Performance-wise in current tech (TGEA1.7.1 'cos I haven't transfered all of my custom scripts over to 1.8.1 yet - though from what I've experimented with - the High Wold map, 1.8.1 gives noticeably better performance than 1.7.1) the DTS polysoup wins out with an FPS of 30% higher than DIF (based on 5 locations and views at 1280x768 resolution with 1700m visibility). That's an max-average fps of DIF 125 and DTS Polysoup 165.
Polysouped DTS version - spot the difference!
Apart from the DTS lighting issue there are also a couple of other problems, such as the model vanishing when the fog/maxvis hits the centre of the bounding box (problematic with large meshes in low visibility environments - but fine with a long maxvis like I'm currently using). I'm a great believer that in making large environments as a single object is better for performance than making hundreds of individual objects and then sticking them in-world together. No matter how many surfaces it has, it is still just one object for the processor to initialize and then worry about, instead of 50. Another issue I've noticed with current tech's polysoup is that the colour/tone/intensity of the textures aren't as vibrant as they are when applied to DIF. I expect this is down to the lightmaps.
Anyhow, it'll be interesting to see what the new tech brings. Roll on Beta.
Why does this all happen? Because geometry scale is 32, small scale lightmaps (like 8) cause trauma on larger brushes when calculating the lightmap itself. Keep brushes smaller for less lightmap calculation map crash trauma. Compressed edges of lightmaps visible? Make lightmap scale the same as geometry to dispell (though to be honest you'll probably still see a few of the little critters lurking out in the far distance if you have a long, long surface like a road). There's also an occaisonal light bleed in some interiors with this.
What the world looks like immediately after it spawns from my id
So, with that finally realised, we set out to design Map2. Map1 (aka High Wold, it's the urban pics in previous blogs) was created as a large test DIF using large facade blocks as the buildings. Rather urbanized, terrace streets. Map2 was designed for more individual buildings, detached, semi-detached housing. The idea being to create a series of prefabs which I can then drop into editor/modeling program, arrange and then export en mass as a single object (DIF or DTS).
And it all seemed to go okay like that. I did attempt a new method of creating a mesh model in Blender and then exporting it as a mapfile, but Blender's map exporter isn't up to anything particularly complicated, and the end result looked like a mangled, disjointed mess on close inspection. Blender can export mapfiles fine - if you stick to the basic rules of being BSP friendly (build it using individual blocks - think lego).
Church tower is 400m away, just out of rifle range but not sniper or lmg
So, establishing that prefabbing really is the way to go, and with a DIF version knocked up, I recreated the whole thing as a DTS. Whilst polysoup collision has been available for a while, the lack of lightmaps has meant that it just didn't cast realistic shadows onto itself or other meshes. This can look a bit odd to say the least. However, there is new tech on the horizon which may well sort this problem out, and which includes scandulous mention (it's not really scandulous, I'm just using a random adjective for teh interwebz draaama) that DIF will be more performance friendly. With my Map2 copied into both DIF and Polysouped DTS, it'll be interesting to see what the difference is in-game using said new tech.
BSP version, roofs are NULLed
To be honest I was having so much fun building the DTS version that I imbellished it quite a bit, so it's got 7k faces instead of 5k as the DIF version. Performance-wise in current tech (TGEA1.7.1 'cos I haven't transfered all of my custom scripts over to 1.8.1 yet - though from what I've experimented with - the High Wold map, 1.8.1 gives noticeably better performance than 1.7.1) the DTS polysoup wins out with an FPS of 30% higher than DIF (based on 5 locations and views at 1280x768 resolution with 1700m visibility). That's an max-average fps of DIF 125 and DTS Polysoup 165.
Polysouped DTS version - spot the difference!
Apart from the DTS lighting issue there are also a couple of other problems, such as the model vanishing when the fog/maxvis hits the centre of the bounding box (problematic with large meshes in low visibility environments - but fine with a long maxvis like I'm currently using). I'm a great believer that in making large environments as a single object is better for performance than making hundreds of individual objects and then sticking them in-world together. No matter how many surfaces it has, it is still just one object for the processor to initialize and then worry about, instead of 50. Another issue I've noticed with current tech's polysoup is that the colour/tone/intensity of the textures aren't as vibrant as they are when applied to DIF. I expect this is down to the lightmaps.
Anyhow, it'll be interesting to see what the new tech brings. Roll on Beta.
About the author
One Bloke ... In His Bedroom ... Making Indie Games ...
#2
Yeah, I saw your blog (and I'm sure there's a resource somewhere .. maybe TGE152). Of course my DTS/DIF levels are the whole terrain size (or near enough).
Having said that, it's mostly road or rail networks which cause the huge size, linking one village to another. With those (hopefully) taken care of with the new road tools I'd be able to make villages/town-areas into seperate models easier (if I do end up using DTS instead of DIF). edit: Of course DIFs don't vanish due to fogging.
Either that or a quick engine mod declaring a new model class and forcing it to always render. Anyhow, we'll see how the "advanced lighting" affects performance.
I've nothing against DIF, especially now I've realised how to avoid it blowing up on export.
04/06/2009 (3:47 pm)
@AndyYeah, I saw your blog (and I'm sure there's a resource somewhere .. maybe TGE152). Of course my DTS/DIF levels are the whole terrain size (or near enough).
Having said that, it's mostly road or rail networks which cause the huge size, linking one village to another. With those (hopefully) taken care of with the new road tools I'd be able to make villages/town-areas into seperate models easier (if I do end up using DTS instead of DIF). edit: Of course DIFs don't vanish due to fogging.
Either that or a quick engine mod declaring a new model class and forcing it to always render. Anyhow, we'll see how the "advanced lighting" affects performance.
I've nothing against DIF, especially now I've realised how to avoid it blowing up on export.
#3
The main hassle im finding with the Dts's like you say is the texturing/lighting, they either seem too dark, wierdly shadowed, or really washed out and bland from overlighting... its trying to find that compromise point. shadowing etc isnt that noticable on the smaller stuff that dts was previously used for, but on larger stuff is where, to me, it gets alot more noticable, plus as theres no baked lighting passo n a dts, the suns angle etc do not effect structural shadowing on a dts as it does on a dif, and omgosh stuff like stairs on a dts are doing my head in... if the scale isnt right you get stuck all the time. I tried a workaround that eb suggested, making the stairs non colission and having an invisible ramp as the colission just above them, but i feel it looks worse in use because it makes the players model very visibly float above the stairs, or cut into them...
Edit:/ couple pics to show what i mean on the lighting issues im having problems with.

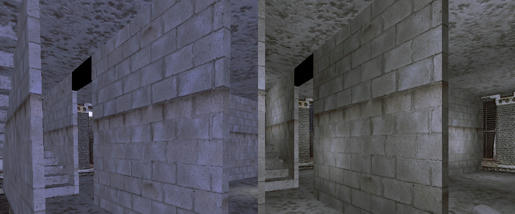

left is dts, right is a portalled dif with no ambient on in the interior, i cant recreate the same kind of lighting and feel within a dts... and like you say it feels like the dts loses the vibrance of the textures...
