TGEA Advanced Shaders (Image Heavy)
by Matt Vitelli · 11/09/2008 (5:42 pm) · 11 comments
I've been working hard on post processes since late June. Only recently have I implemented many of the effects TGEA users have desired for years. This has taken a great many months, but things are finally coming together. I've learned powerful lessons and valuable techniques for working with image-space. Below is a compilation of the past few months.

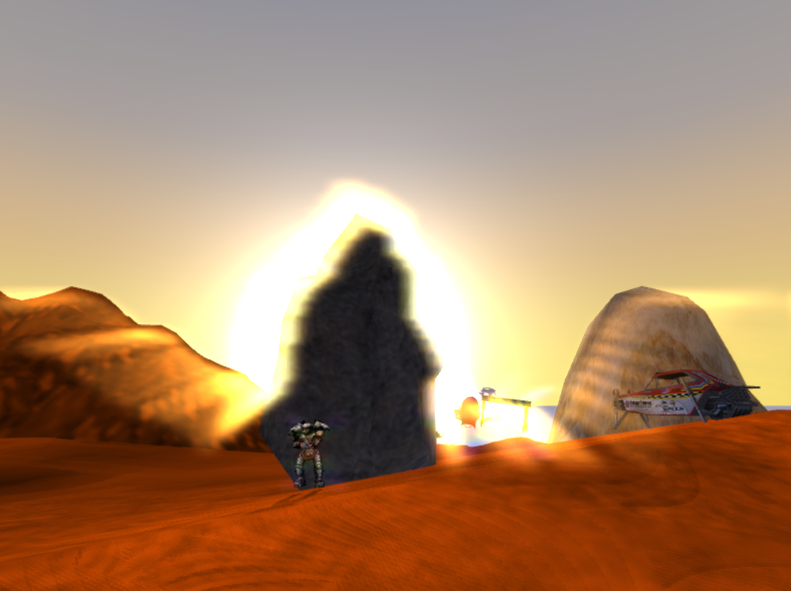

God-Rays
Similar to my light-extrusion mapping from an earlier plan, only this creates one based on objects in the scene and collision intersections with the sun.
Motion-Blur
This uses the good ol' frame-to-frame blur method. An example of this can be found in RenderMonkey.
Real-Time Atmospheric Day and Night Cycles and Dynamic Atlas Shadows
Video Here
This is useful for realistic day and night cycles. The sun is dynamically generated using a shader and the entire sky uses 3 lookup tables. This is a performance enhancement compared to the many textures used in the original skybox class. It also is visually more appealing.
Dynamic atlas shadows are also part of this. Unfortunately, I have no video of this in action, though it can be clearly seen in the screenshots. The shadowing uses a height-tracing algorithm similar to relief mapping. This has some benefits to standard shadow mapping, but also some disadvantages visually. Ambient-occlusion is also calculated in the shader.
Day

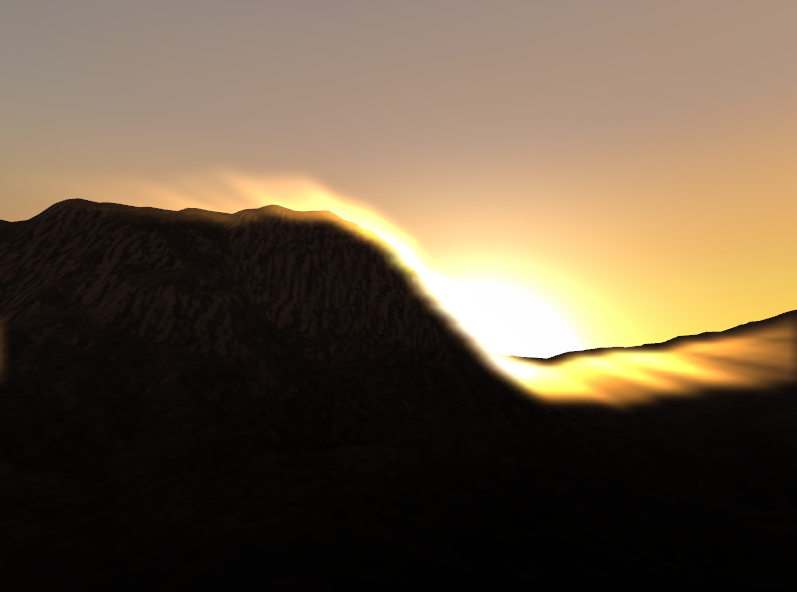

Sunset
Night

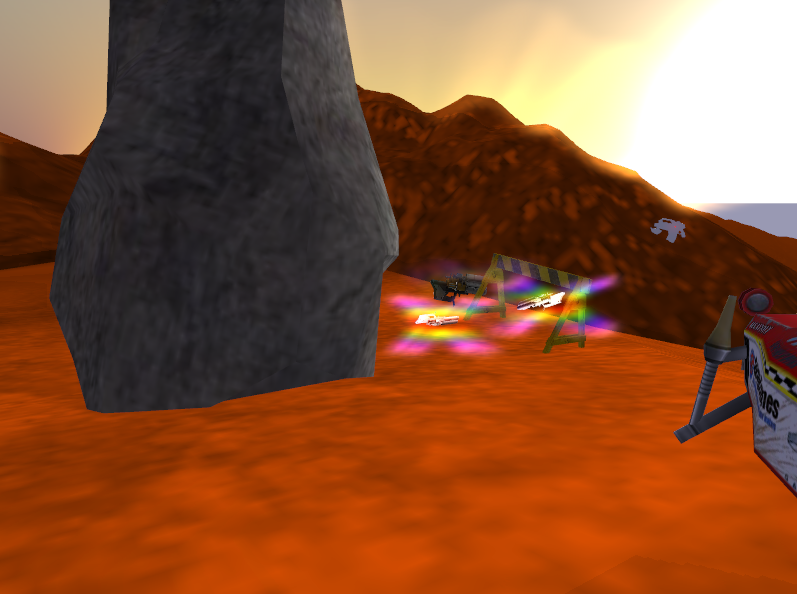

Atmospheric Glare Using Diffraction
Essentially, this is the effect seen when a viewer squints their eyes at a light source. The halo gets skewed in seemingly random directions when you squint your eyes, creating a cross in glare.

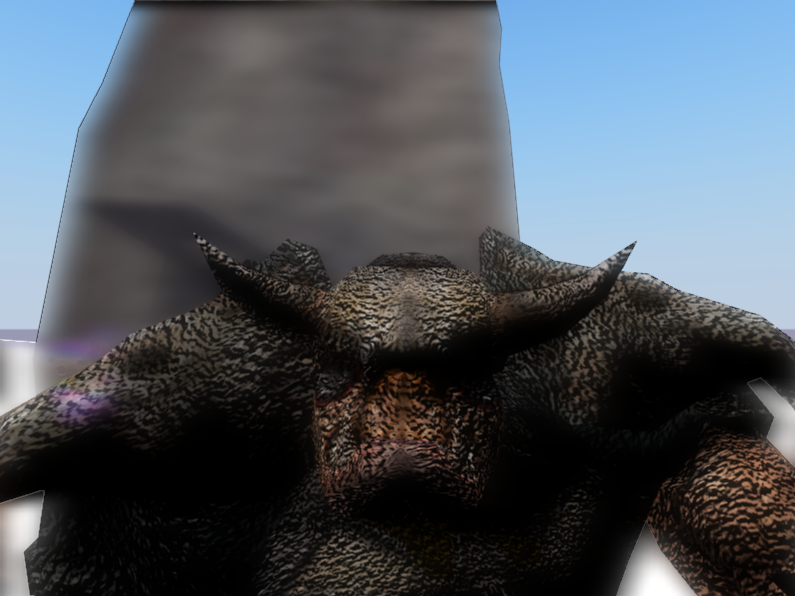

Depth of Field
Pretty good technique, but it requires a high-precision, high-resolution depth map for quality. (R32 texture-type)
Normal-Based Screen Space Ambient Occlusion
This is similar to the traditional depth-based approach, only it is done using the normal-angles to calculate occlusion. It tends to be more accurate and gives better results and less of the "black aura" that's seen in depth-map based approaches.

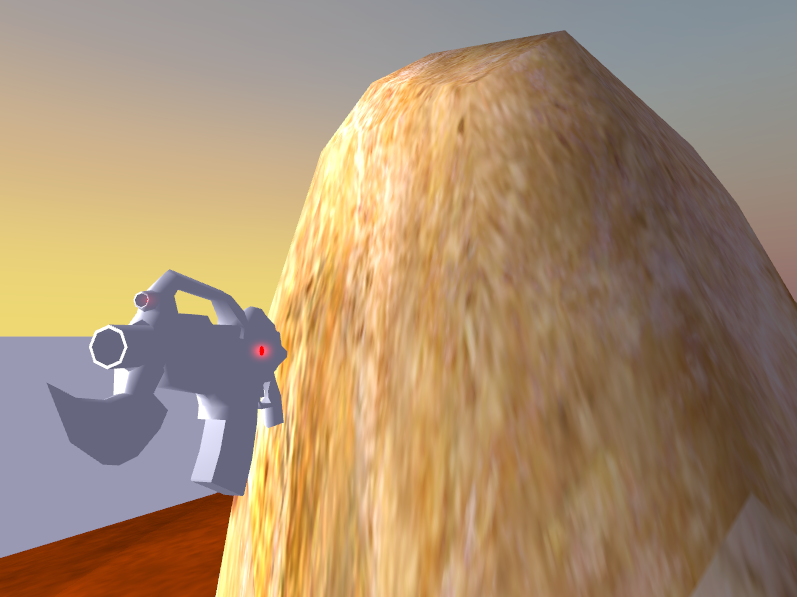

Without AO
With AO
God-Rays
Similar to my light-extrusion mapping from an earlier plan, only this creates one based on objects in the scene and collision intersections with the sun.
Motion-Blur
This uses the good ol' frame-to-frame blur method. An example of this can be found in RenderMonkey.
Real-Time Atmospheric Day and Night Cycles and Dynamic Atlas Shadows
Video Here
This is useful for realistic day and night cycles. The sun is dynamically generated using a shader and the entire sky uses 3 lookup tables. This is a performance enhancement compared to the many textures used in the original skybox class. It also is visually more appealing.
Dynamic atlas shadows are also part of this. Unfortunately, I have no video of this in action, though it can be clearly seen in the screenshots. The shadowing uses a height-tracing algorithm similar to relief mapping. This has some benefits to standard shadow mapping, but also some disadvantages visually. Ambient-occlusion is also calculated in the shader.
Day
Sunset
Night
Atmospheric Glare Using Diffraction
Essentially, this is the effect seen when a viewer squints their eyes at a light source. The halo gets skewed in seemingly random directions when you squint your eyes, creating a cross in glare.
Depth of Field
Pretty good technique, but it requires a high-precision, high-resolution depth map for quality. (R32 texture-type)
Normal-Based Screen Space Ambient Occlusion
This is similar to the traditional depth-based approach, only it is done using the normal-angles to calculate occlusion. It tends to be more accurate and gives better results and less of the "black aura" that's seen in depth-map based approaches.
Without AO
With AO
