Franken-Adam
by Gareth Fouche · 09/20/2007 (3:26 pm) · 8 comments
Right ho, so I mentioned in my previous post that I'd been doing "other things" in the last month besides modelling a building. Well I have. Character modelling to be specific.
Before I go on I should probably mention I have never in my life done any character modelling before this. In fact this was the last big, intimidating hurdle for me. I wasn't sure if I could do it. I've modelled some static props but nothing....fleshy ;)
Right, so how does one start if one has never done any character modelling and has extremely limited time and money?
Simple, we cheat. :D
You've all met Adam :
garagegames.com/products/61/
Adam is a prebuilt model, built by a skilled artist, Spencer Boomhower. He is textured, rigged and animated. He has been fine tuned to have efficient polygon counts so that he runs well on older machines, while still looking as good as possible within those constraints. His animations look fluid and natural.
Speaking of animations, there is another bonus to using Adam. The Torque Motion pack includes a whole bunch of mo-cap animations ready to plug into his skeleton. Swimming animations, climbing animations, even wounded animations. Shweet.
But there is a problem. Adam is slightly...well he is slightly FPS-ish. You could break rocks on that jaw.
So the first goal is to modify adams base mesh, to make him slightly less superhuman looking. Down to a normal RPG "above average" musculature.
That was the easy part.
Ok, before I continue I will discuss the clothing system for Scars. It works kinda like Morrowind. Basically you can swap in and out clothing pieces and see the mesh pieces on your model. You've seen this as players, but how is it actually achieved?
Well, first you cut your model into parts. Arms, head, torso, etc. The you model each variation of each part. Naked, wearing cloth, wearing leater, wearing plate mail, etc. All on the same model, so he is one huge mishmash. Then you build code into your game engine to hide all meshes on the model except the ones you are interested in. (The Mesh Swapping resource)
Right, so thats what I set out to do. Which was great fun, because it involved breaking this well designed model and hoping I could put it back together in something resembling a decent fashion. Oh yes, and I'd need to figure out exactly how to operate the tools I was using. I, eherm, hadn't actually looked at things like Skin modifiers in 3DS max before....
So to start with I needed a base semi-naked model. I almost immediately decided Adams legs had to go. Moving the models vertices around made him a bit thinnner and whatnot, but the legs were designed to be baggy pants. I could shape them into vaguely leg-like shapes but they just looked odd, and wouldn't have bent at the knees properly. So I cut them off and built him some new ones :D.
I also got rid of his vest texture (not shown here), and changed his pants to shorts. I removed the military haircut. At this point I'm just getting the concept going, so horrible programmer art textures are used. Notice the ugly seams and blurriness.
Then I broke him into parts. And learnt how to use the Skin modifier in Max. Because after breaking him up I need to redo it, for each body part, so that he would be able to animate. THAT was a learning experience. Especially since the seams where the pieces meet need to have matching vertex weights (how much the skeletons bones effect each vertex) or he "splits" at the seams when he moves.
Alright, now it is no point doing all this modelling work if I can't get the necessary code working to do the mesh swapping. Time to build some quick and dirty clothing parts, get the vertex weightings "good enough" and put it into the engine. Then I can write the code.
Behold :

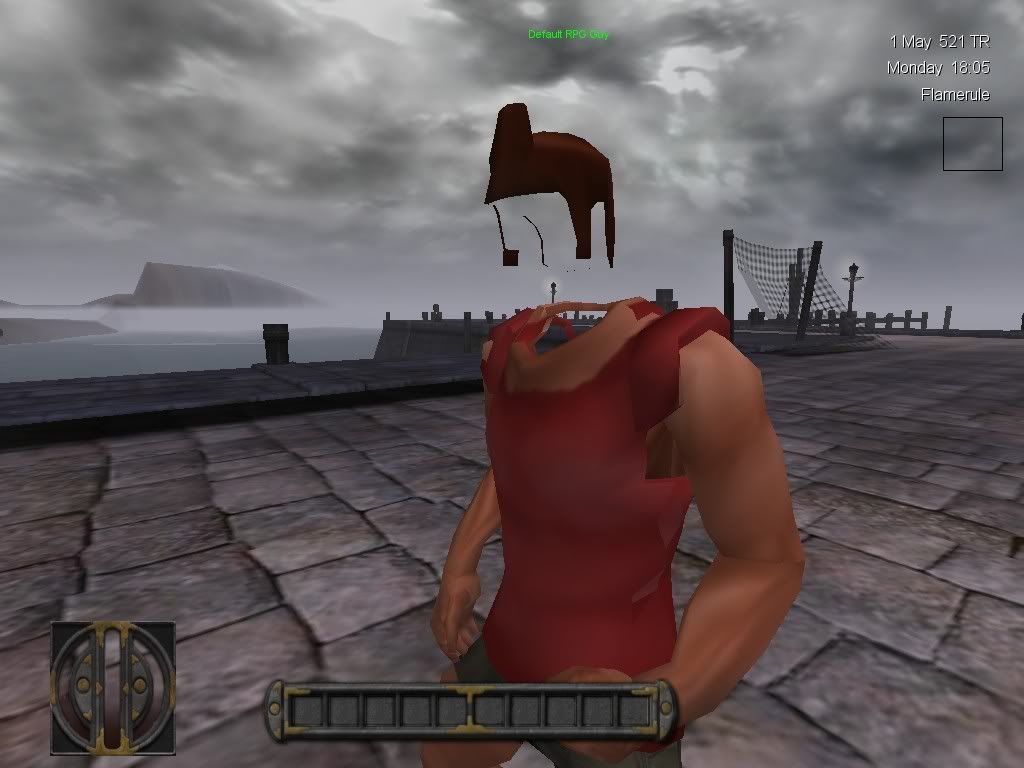

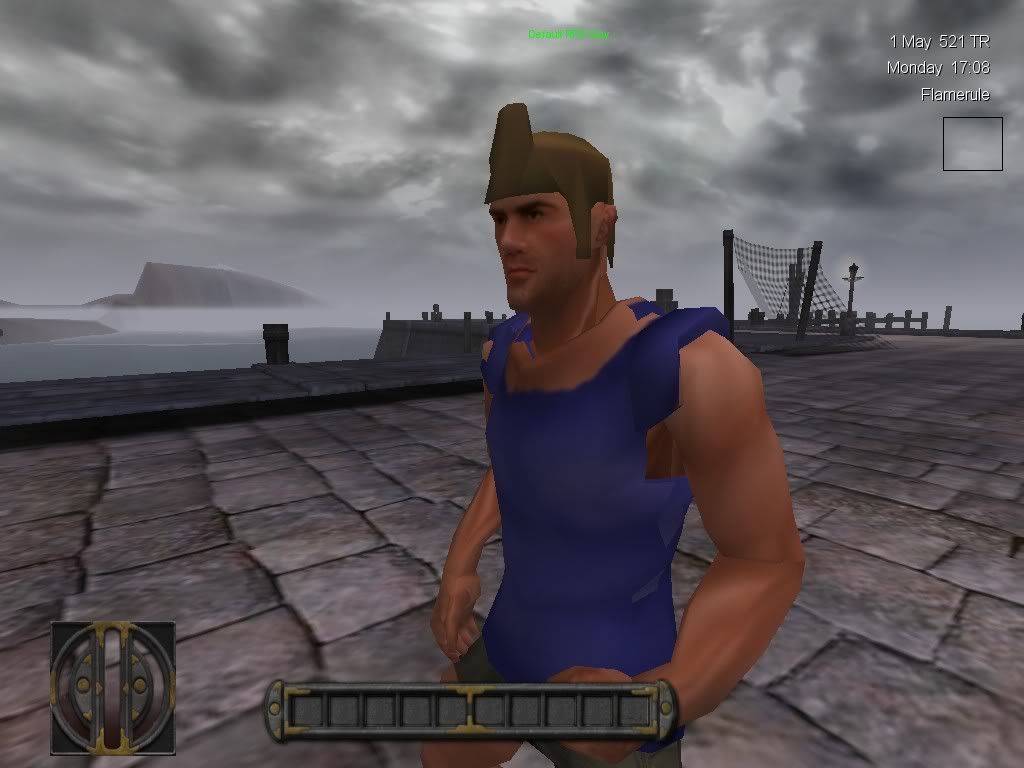

Ok, so he is doing his idle animation, so at least it's sorta working. You can see the splitting at his elbow that I talked about. However, he is wearing his ugly red "chest armor" I made for him. Time to get to the coding.
First I work out the database scheme. Basically, for a piece of armor, you can define an equipment mesh to show, a texture to use for that mesh, and body parts to hide (so for instance you hide his head when he is wearing a helmet).
Well, the body part hiding works :D

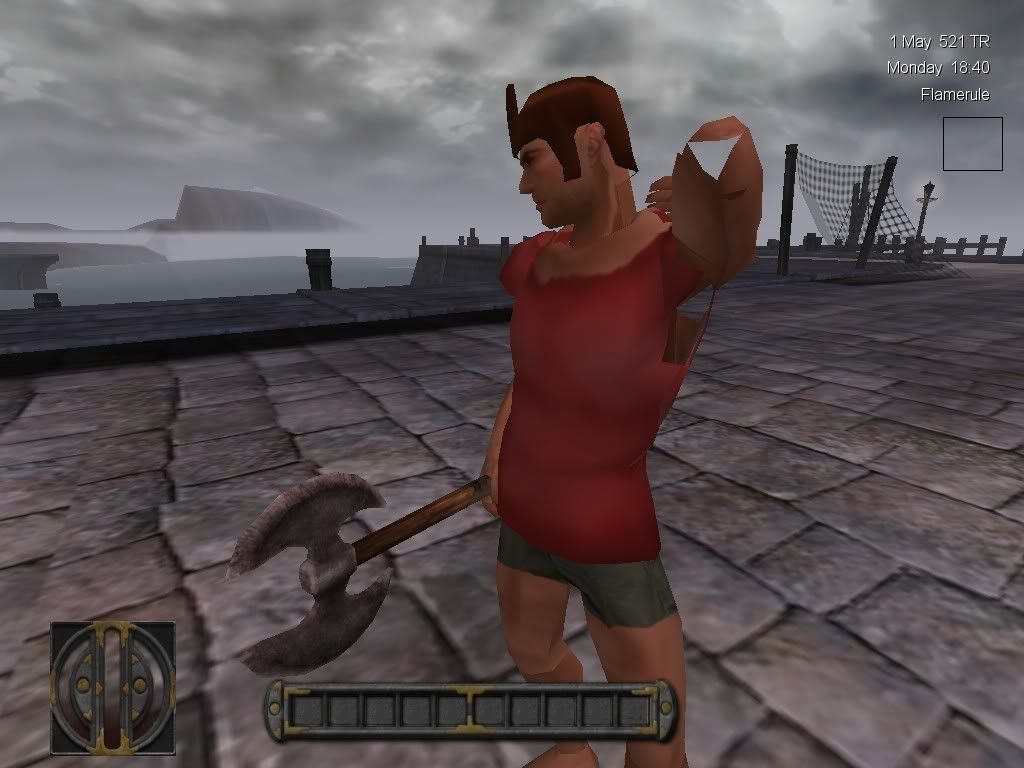

As does the texture swapping :
Ironically, the db stuff isn't difficult, nor is the code to swap the meshes, thanks to the resource. No, it is hooking up the code to the inventory interface, through the drag and drop icons that takes the most time. It's always the seemingly small things.

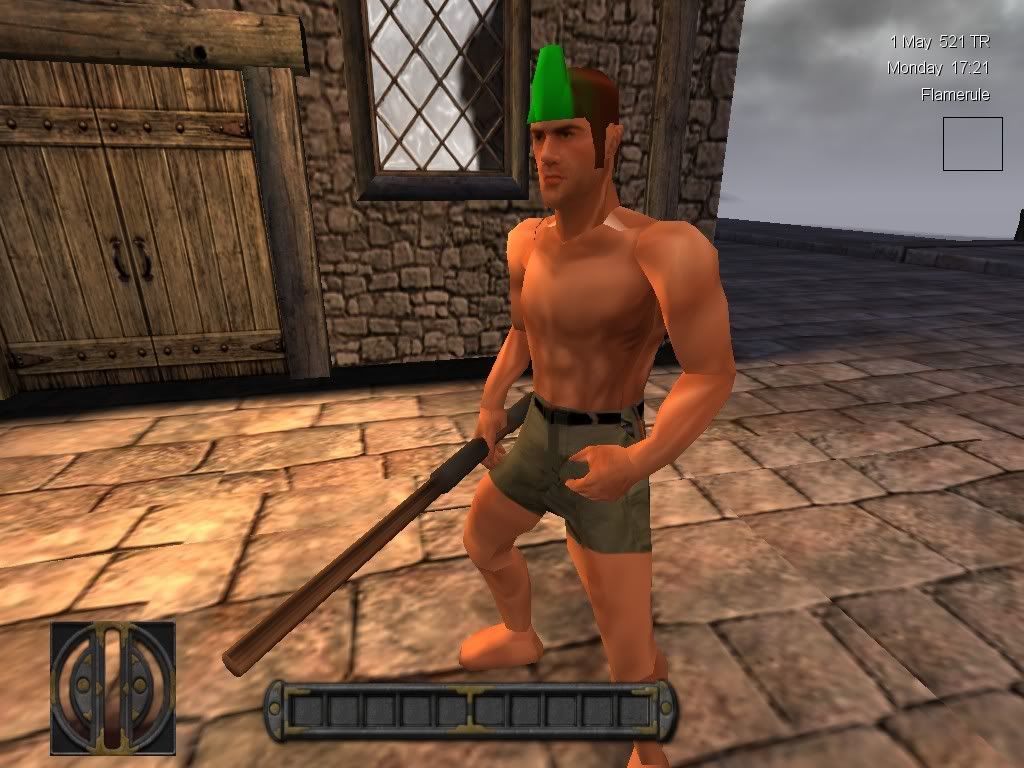

But I get it done. Behold again, the Ugly Green Hat.
Right, so now that it is working, time to get serious with the art.
But first I cheat again. This time with the texturing. I need textures. I could take photos, tweak them etc to get what I want....or I could see what is out there for sale. Enter mmoworkshop.com and his content packs. Including...a clothing and armor texture pack :D
www.mmoworkshop.com/trac/mom/wiki/Store
One swipe of the credit card later and I'm sitting with a whole bunch of textures. But they are designed for his models which don't look like my models, so they still need a bit of doctoring. Now some people may want to complain "but art direction! You can't just use a bunch of generic textures!". Yes, I can. Look, chainmail is chainmail. I can't generate that as art, and I don't have chainmail on hand to photograph. If I don't like how his textures look I can modify them to look how I want a WHOLE lot easier than making them from scratch. Photoshop rules.
Alrighty, so I begin using those textures, cutting them up and applying them to the model, etc. I also begin working on facial hair. It works just like armor, a swappable mesh which can have different coloured textures applied to it (hair colour).

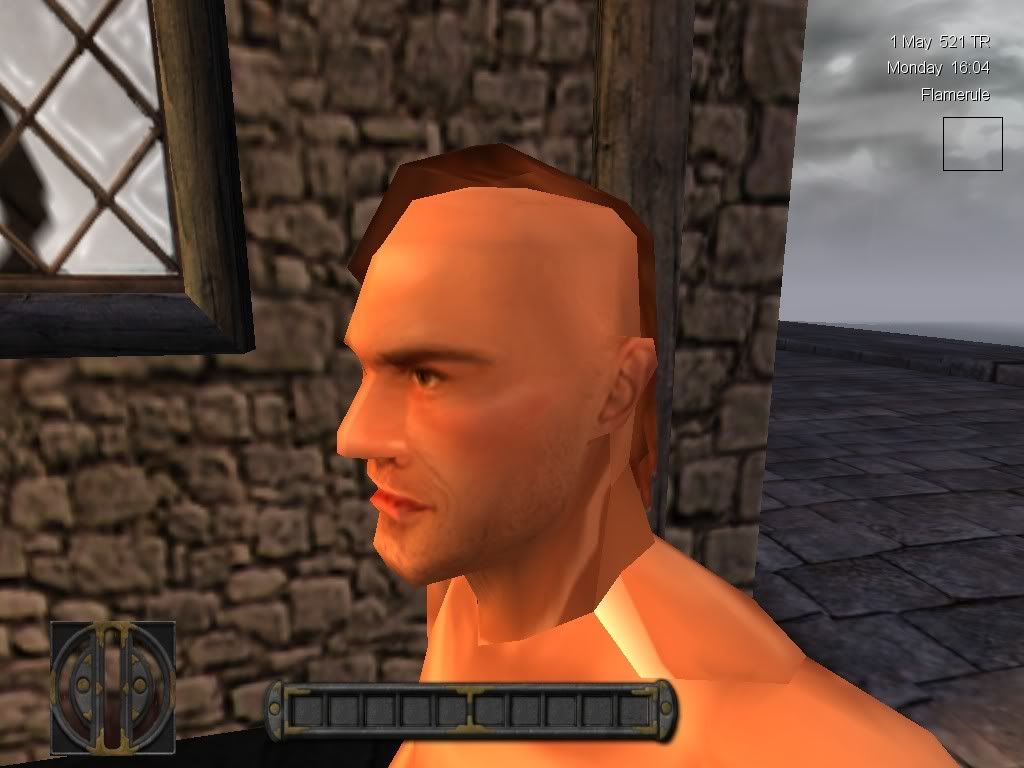

(As an aside, I tried to use transparency with hair textures, Torque doesn't like it, this is the result :
So I gave up on that.)
Aaaand that brings us to today. I'm not done, not by a long shot. There are still plenty more meshes to do and I have to "skin" the clothing to make it animate properly. Some of the textures still have problems or seams. Some vertices will be shifted (some of my friends reckon the ankles are too thin,lol). And these are all first draft. I will probably go back later and add dirt, wear etc, make things less clean looking. I figure it is better to get everything working in a basic form before polishing and tweaking, etc. (And before anyone points it out I know the neck texture is wonky ;))

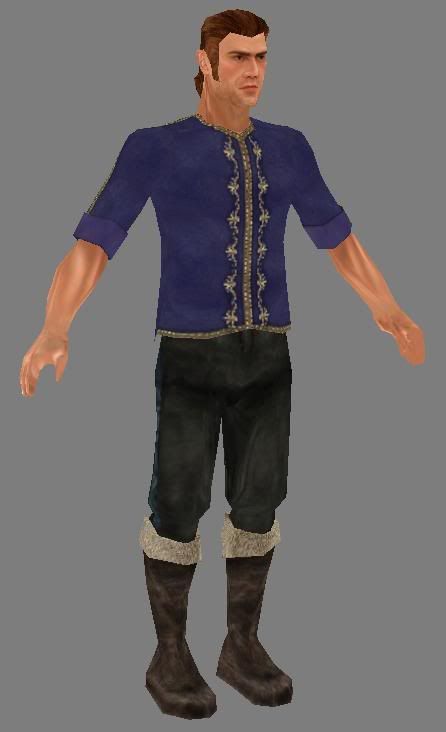

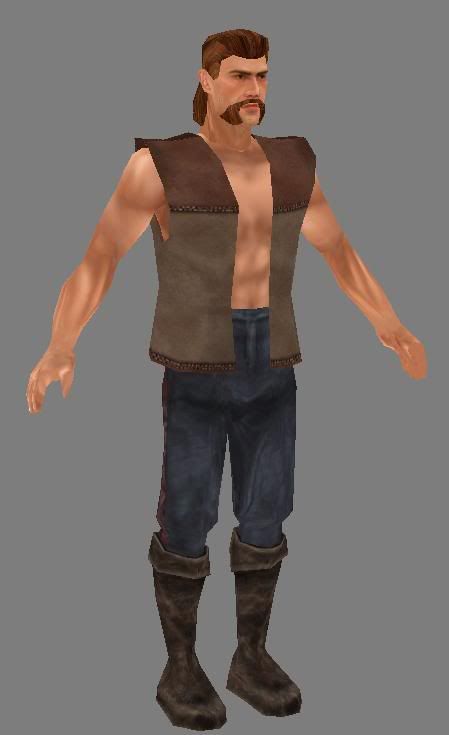

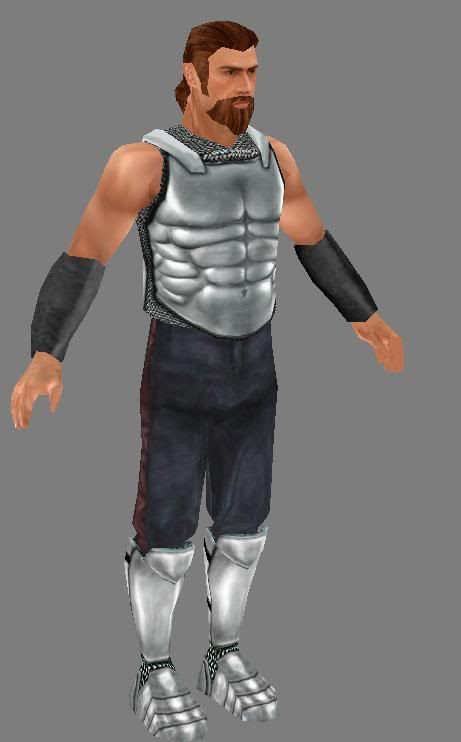

So here you go, the end product of the most of this and last month, in between all the frikken overtime (that City Watch HQ building model was actually me "taking a break" from working on the characters, I shift focus like that to keep myself from getting bored or burntout on one thing). Its taken a while, but
I'm getting quicker and more efficient as I learn :

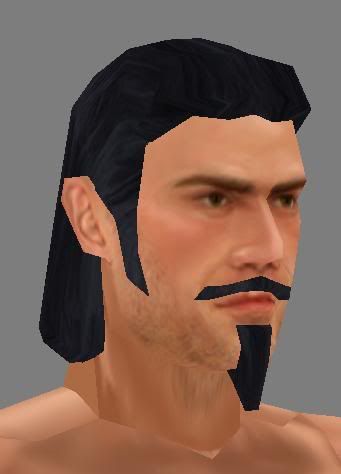

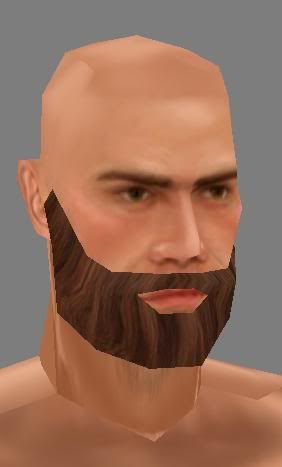

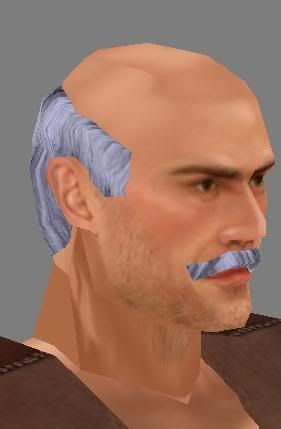

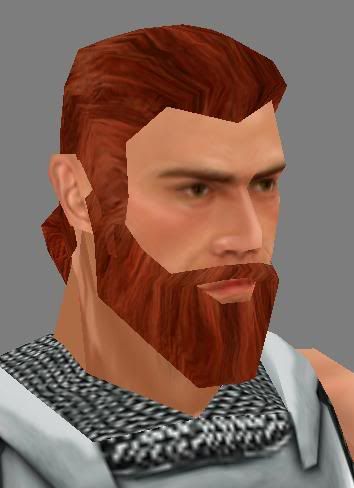

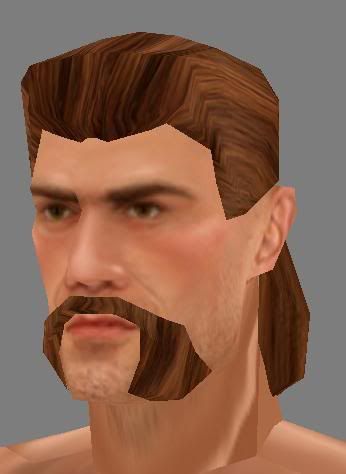

Each head shows 1 beard and 1 hearstyle combo, as well as texture swapping.
Thats right, finally a game which lets you play as a mulleted redneck!
You have no idea how painful those steel boots were to texture. I hate feet. People should have cubes at the end of their legs.
They will look even better once this site :
www.3d.sk/
stops playing silly buggers and accepts my credit card. Then I can have different facial textures, not just different hairstyles.
And, once I'm finished with this, it's the ladies' turn! Ava, I'm looking at you!
Before I go on I should probably mention I have never in my life done any character modelling before this. In fact this was the last big, intimidating hurdle for me. I wasn't sure if I could do it. I've modelled some static props but nothing....fleshy ;)
Right, so how does one start if one has never done any character modelling and has extremely limited time and money?
Simple, we cheat. :D
You've all met Adam :
garagegames.com/products/61/
Adam is a prebuilt model, built by a skilled artist, Spencer Boomhower. He is textured, rigged and animated. He has been fine tuned to have efficient polygon counts so that he runs well on older machines, while still looking as good as possible within those constraints. His animations look fluid and natural.
Speaking of animations, there is another bonus to using Adam. The Torque Motion pack includes a whole bunch of mo-cap animations ready to plug into his skeleton. Swimming animations, climbing animations, even wounded animations. Shweet.
But there is a problem. Adam is slightly...well he is slightly FPS-ish. You could break rocks on that jaw.
So the first goal is to modify adams base mesh, to make him slightly less superhuman looking. Down to a normal RPG "above average" musculature.
That was the easy part.
Ok, before I continue I will discuss the clothing system for Scars. It works kinda like Morrowind. Basically you can swap in and out clothing pieces and see the mesh pieces on your model. You've seen this as players, but how is it actually achieved?
Well, first you cut your model into parts. Arms, head, torso, etc. The you model each variation of each part. Naked, wearing cloth, wearing leater, wearing plate mail, etc. All on the same model, so he is one huge mishmash. Then you build code into your game engine to hide all meshes on the model except the ones you are interested in. (The Mesh Swapping resource)
Right, so thats what I set out to do. Which was great fun, because it involved breaking this well designed model and hoping I could put it back together in something resembling a decent fashion. Oh yes, and I'd need to figure out exactly how to operate the tools I was using. I, eherm, hadn't actually looked at things like Skin modifiers in 3DS max before....
So to start with I needed a base semi-naked model. I almost immediately decided Adams legs had to go. Moving the models vertices around made him a bit thinnner and whatnot, but the legs were designed to be baggy pants. I could shape them into vaguely leg-like shapes but they just looked odd, and wouldn't have bent at the knees properly. So I cut them off and built him some new ones :D.
I also got rid of his vest texture (not shown here), and changed his pants to shorts. I removed the military haircut. At this point I'm just getting the concept going, so horrible programmer art textures are used. Notice the ugly seams and blurriness.
Then I broke him into parts. And learnt how to use the Skin modifier in Max. Because after breaking him up I need to redo it, for each body part, so that he would be able to animate. THAT was a learning experience. Especially since the seams where the pieces meet need to have matching vertex weights (how much the skeletons bones effect each vertex) or he "splits" at the seams when he moves.
Alright, now it is no point doing all this modelling work if I can't get the necessary code working to do the mesh swapping. Time to build some quick and dirty clothing parts, get the vertex weightings "good enough" and put it into the engine. Then I can write the code.
Behold :
Ok, so he is doing his idle animation, so at least it's sorta working. You can see the splitting at his elbow that I talked about. However, he is wearing his ugly red "chest armor" I made for him. Time to get to the coding.
First I work out the database scheme. Basically, for a piece of armor, you can define an equipment mesh to show, a texture to use for that mesh, and body parts to hide (so for instance you hide his head when he is wearing a helmet).
Well, the body part hiding works :D
As does the texture swapping :
Ironically, the db stuff isn't difficult, nor is the code to swap the meshes, thanks to the resource. No, it is hooking up the code to the inventory interface, through the drag and drop icons that takes the most time. It's always the seemingly small things.
But I get it done. Behold again, the Ugly Green Hat.
Right, so now that it is working, time to get serious with the art.
But first I cheat again. This time with the texturing. I need textures. I could take photos, tweak them etc to get what I want....or I could see what is out there for sale. Enter mmoworkshop.com and his content packs. Including...a clothing and armor texture pack :D
www.mmoworkshop.com/trac/mom/wiki/Store
One swipe of the credit card later and I'm sitting with a whole bunch of textures. But they are designed for his models which don't look like my models, so they still need a bit of doctoring. Now some people may want to complain "but art direction! You can't just use a bunch of generic textures!". Yes, I can. Look, chainmail is chainmail. I can't generate that as art, and I don't have chainmail on hand to photograph. If I don't like how his textures look I can modify them to look how I want a WHOLE lot easier than making them from scratch. Photoshop rules.
Alrighty, so I begin using those textures, cutting them up and applying them to the model, etc. I also begin working on facial hair. It works just like armor, a swappable mesh which can have different coloured textures applied to it (hair colour).
(As an aside, I tried to use transparency with hair textures, Torque doesn't like it, this is the result :
So I gave up on that.)
Aaaand that brings us to today. I'm not done, not by a long shot. There are still plenty more meshes to do and I have to "skin" the clothing to make it animate properly. Some of the textures still have problems or seams. Some vertices will be shifted (some of my friends reckon the ankles are too thin,lol). And these are all first draft. I will probably go back later and add dirt, wear etc, make things less clean looking. I figure it is better to get everything working in a basic form before polishing and tweaking, etc. (And before anyone points it out I know the neck texture is wonky ;))
So here you go, the end product of the most of this and last month, in between all the frikken overtime (that City Watch HQ building model was actually me "taking a break" from working on the characters, I shift focus like that to keep myself from getting bored or burntout on one thing). Its taken a while, but
I'm getting quicker and more efficient as I learn :
Each head shows 1 beard and 1 hearstyle combo, as well as texture swapping.
Thats right, finally a game which lets you play as a mulleted redneck!
You have no idea how painful those steel boots were to texture. I hate feet. People should have cubes at the end of their legs.
They will look even better once this site :
www.3d.sk/
stops playing silly buggers and accepts my credit card. Then I can have different facial textures, not just different hairstyles.
And, once I'm finished with this, it's the ladies' turn! Ava, I'm looking at you!
