LightWave DTS Exporter v05-02-17 Released
LightWave DTS Exporter v05-02-17 Released
| Name: | David \"Fulcrum\" Wyand |  |
|---|---|---|
| Date Posted: | Feb 18, 2006 | |
| Rating: |  Not Rated | |
| Public: | YES | |
| Comments: | YES | |
| RSS Feed: |  or Subscribe with  . | |
| Profile Page: | View profile page for David \"Fulcrum\" Wyand |
Blog post
I've just released a small update to the LightWave DTS Exporter over at Gnometech. You can grab the Windows and OSX versions from the Product page.
So what's new in this version? I'm glad you asked!
More than 8 Collision Meshes for TGE 1.3
Todd Pickens' RTS Environment Pack contains some shapes that have complex collision meshes. He ran up against the limitation in TGE 1.3 of 8 collision details within a single DTS file (TGE 1.4+ has removed this limitation). To work around this, I added a new feature to the exporter that will place all collision meshes into the same collision detail rather than one detail per mesh.

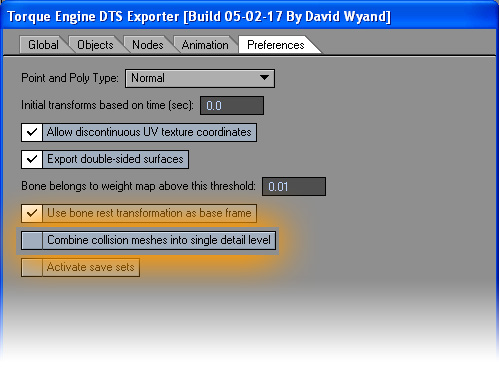

To take advantage of this, go to the Preferences tab and activate the Combine collision meshes into single detail level check box.
So for those that are taking advantage of Todd's great pack, you'll need to pick up this version of the LightWave exporter to export his more complex shapes.
Detail Map Scale
The LightWave exporter has had support for detail maps for quite a while, but you were never able to adjust their scale. Now you can!

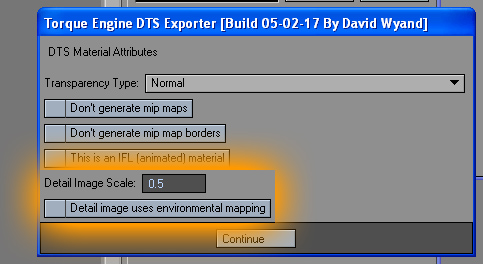

On the DTS Exporter Material Attributes shader there is a new Detail Image Scale edit box that allows you to size the detail map independent of the base texture. This ability has always been in the DTS file format, but was not accessible to the LightWave exporter.
I've also corrected a bug with detail maps always being environment mapped. Now the default is to not environment map them. If you want to turn environmental mapping back on, use the new Detail image uses environmental mapping check box on the DTS Exporter Material Attributes shader.
OSX Bug with DTS Exporter Material Attributes Shader
There was a bug with the previous version of the LightWave exporter that would cause the OSX version of LightWave to hang when you attempted to open the Material Attributes shader interface. I've made some changes and have tested under LightWave v8.5. It appears that this bug has been corrected. Don't forget to update the exporter plug-in for both Layout and Modeler to ensure that you receive this bug fix!
Well, that's the list. Please let me know if you run into any problems with this version. Enjoy!
- LightWave Dave
So what's new in this version? I'm glad you asked!
More than 8 Collision Meshes for TGE 1.3
Todd Pickens' RTS Environment Pack contains some shapes that have complex collision meshes. He ran up against the limitation in TGE 1.3 of 8 collision details within a single DTS file (TGE 1.4+ has removed this limitation). To work around this, I added a new feature to the exporter that will place all collision meshes into the same collision detail rather than one detail per mesh.
To take advantage of this, go to the Preferences tab and activate the Combine collision meshes into single detail level check box.
So for those that are taking advantage of Todd's great pack, you'll need to pick up this version of the LightWave exporter to export his more complex shapes.
Detail Map Scale
The LightWave exporter has had support for detail maps for quite a while, but you were never able to adjust their scale. Now you can!
On the DTS Exporter Material Attributes shader there is a new Detail Image Scale edit box that allows you to size the detail map independent of the base texture. This ability has always been in the DTS file format, but was not accessible to the LightWave exporter.
I've also corrected a bug with detail maps always being environment mapped. Now the default is to not environment map them. If you want to turn environmental mapping back on, use the new Detail image uses environmental mapping check box on the DTS Exporter Material Attributes shader.
OSX Bug with DTS Exporter Material Attributes Shader
There was a bug with the previous version of the LightWave exporter that would cause the OSX version of LightWave to hang when you attempted to open the Material Attributes shader interface. I've made some changes and have tested under LightWave v8.5. It appears that this bug has been corrected. Don't forget to update the exporter plug-in for both Layout and Modeler to ensure that you receive this bug fix!
Well, that's the list. Please let me know if you run into any problems with this version. Enjoy!
- LightWave Dave
Recent Blog Posts
| List: | 01/24/08 - Amazon EC2 Torque Test Follow Up 01/16/08 - Torque on Amazon's EC2. Need your help! 10/11/07 - Jeff Tunnel's Band LIVE 10/10/07 - Live Video Stream from IGC2007 10/02/07 - Come ride the rapids 04/06/07 - What's my blog doing under the GarageGames tab? 07/05/06 - LightWave DTS Exporter v06-07-04 Released 04/21/06 - Babies wait for no man |
|---|
Submit your own resources!| Aaron E (Feb 18, 2006 at 00:23 GMT) |
As an aside, I'm loving TSTPro. You've done a lot to help out the community and you are definitely appreciated.
| Michael Cozzolino (Feb 18, 2006 at 03:14 GMT) |
| David \"Fulcrum\" Wyand (Feb 18, 2006 at 04:33 GMT) |
| Allyn "Mr_Bloodworth" Mcelrath (Feb 18, 2006 at 16:40 GMT) |
Now, i need a tutorial on how to make detail maps , lol.. Do i apply them to the bump? spec? second layer in a surface?
..../ponders
| David \"Fulcrum\" Wyand (Feb 18, 2006 at 18:47 GMT) |
Thanks for the kind words.
Allyn
I'd recommend reading the changes.txt file if you're ever wondering how something works. Here's the excerpt from 04-04-13:
- Added in Detail Maps. These are usually gray-scale images that are applied over the coloured
surface, often to "dirty it up". To apply a detail map, place an image into a surface's
diffuse channel. This will cause a detail map material to be exported. Note that as of this
date, the TGE will render the detail map in a second rendering pass. This means that detail
mapped polygons will be rendered twice each frame.
- LightWave Dave
| Allyn "Mr_Bloodworth" Mcelrath (Feb 20, 2006 at 23:12 GMT) |
| Victor Gil (Jul 22, 2006 at 21:29 GMT) |
| Victor Gil (Jul 22, 2006 at 21:32 GMT) |
| Dave Adams (Oct 05, 2006 at 17:06 GMT) |
Looks like you are doing real good work out there, real service to the community. But I've been "LightwaveDave" for better than 10 years on the web, and It'd be a real shame and unneccesary for us to start being confused by folks on the internet. You don't want folks giving me credit for yiur good work, and vice/versa. No offense Dave, but just ask around, I had a "LightwaveDave's 3d Space site as early as 96, I'm not ready to give the handle up.
LightwaveDave Adams
| CDK (Jan 13, 2007 at 14:56 GMT) |
I also use Lightwave as my 3D app of choice and Blender if I have to ;)
| Todd Pickens (May 17, 2007 at 04:46 GMT) |
I am going to have to put that to use soon.
Great stuff
| John Rockefeller (May 17, 2007 at 21:07 GMT) |
Help!! Thanks
| Ryan (Sep 14, 2007 at 13:09 GMT) |
I m doing light work on torque.I want to make my own .dts and .map file.So please give me suggestion.
Thanks.
